Name: China Customized Hatch Cover Cylinder Suppliers, Manufacturers - Factory Direct Price - HAITE
Brand: Haite Machinery
SKU: 137264283

Used for open or off the hatch cover

Design pressure: 25Mpa or 28Mpa

Working pressure: -25℃~+55℃

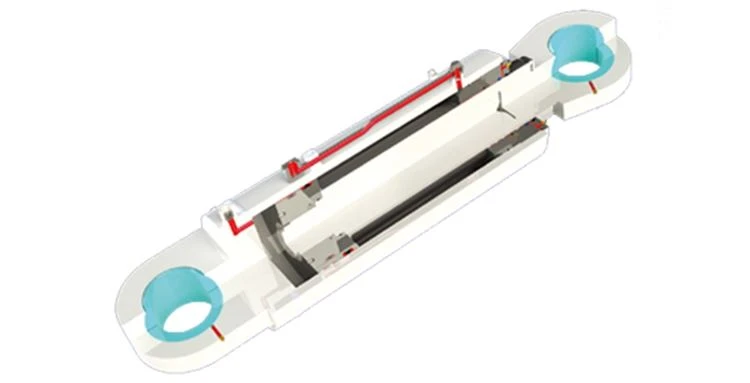

30-x (1)

30-x (2)

Bore φD1	Rod φD2	OD φD	Φd3 H8	B	C	R	E1	E2	F	L0
50	28/32	68	25	24	26	30	35	35	50	230
63	35/40	83	32	24	26	35	40	40	55	255
80	45/50	102	40	30	32	45	50	50	70	300
90	50/63	114	40	40	45	50	50	50	70	310
100	63/70	121	50	45	50	55	65	65	90	370
110	70	133	50	45	50	60	70	70	95	385
125	80/90	152	60	55	60	70	80	80	105	420
140	90/100	168	70	60	65	75	85	85	115	455
150	85/90	180	70	60	65	80	90	90	120	470
160	100/110	194	80	65	70	85	100	100	130	505
180	110/125	219	90	70	80	95	110	110	140	545
200	125/140	245	100	80	90	105	120	130	165	595
220	140/160	273	110	95	100	115	140	140	175	640
225	140/160	273	110	95	100	115	140	140	175	640
250	160	299	125	95	100	130	140	140	175	670
280	180	340	140	110	125	150	170	170	210	750
300	200	356	150	130	140	160	180	180	220	810
320	220	394	160	140	150	170	200	200	240	870
Note: L0-dead length; S-stroke; L0+S=install distance.
